Thin Fireproof Insulation Panels 3mm 6mm 10mm Aerogel Introduction 650J

    Buy cheap Thin Fireproof Insulation Panels 3mm 6mm 10mm Aerogel Introduction 650J from wholesalers

    Buy cheap Thin Fireproof Insulation Panels 3mm 6mm 10mm Aerogel Introduction 650J from wholesalers
    • Buy cheap Thin Fireproof Insulation Panels 3mm 6mm 10mm Aerogel Introduction 650J from wholesalers

    Thin Fireproof Insulation Panels 3mm 6mm 10mm Aerogel Introduction 650J

    Ask Lasest Price
    Brand Name : KINGHONEST
    Certification : ISO9001
    Price : Negotiation
    Delivery Time : 1-2 Days
    Payment Terms : T/T
    Supply Ability : 10000 Square meters / Month
    • Product Details
    • Company Profile

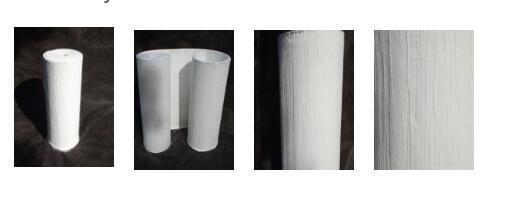

    Thin Fireproof Insulation Panels 3mm 6mm 10mm Aerogel Introduction 650J


    Aerogel Introduction650


    Aerogels are solids with high porosity (<100 nm) and hence possess extremely low density (∼0.003 g/cm3) and very low conductivity (∼10 mW/mK). In recent years, aerogels have attracted more and more attention due to their surprising properties and their existing and potential applications in wide range of technological areas. An overview of aerogels and their applications as the building envelope components and respective improvements from an energy efficiency perspective including performance is given here. This overview covers thermal insulation properties of aerogels and studies regarding structural features which will be helpful in buildings envelope. The improvements of thermal insulation systems have future prospects of large savings in primary energy consumption. It can be concluded that aerogels have great potential in a wide range of applications as energy efficient insulation, windows, acoustics, and so forth.


    Specification650-3650-6650-10
    Thickness3mm6mm10mm
    Length38m38m27/36m
    Width1500mm1500mm1500mm
    ColorBeigeBeigeBeige
    Using Temperature-50~650C-50~650C-50~650C
    NotesSize could be on customer's requirement
    Size Stability1% GB/T 8811
    Shrinkage Temperature under Pressure800C GB/T 11835
    Compressive Strength@10% 20Kpa GB/T 13480
    Compressive Strength@25% 150Kpa
    Fire RatingA GB/T 8624
    Tensile Strength1000KPa GB/T 17911
    Thermal Conductivity (Mean Temp.)25 C O.020w/(m*k)GB/T 10295
    Thermal Conductivity (Mean Temp.)200 C ; O.028w/(m*k)GB/T 10295
    Thermal Conductivity (Mean Temp.)300 C 0.035w/(m*k)GB/T 10295
    Thermal Conductivity (Mean Temp.)400 C O.044w/(m*k)GB/T 10295
    Thermal Conductivity (Mean Temp.)500 C O.069w/(m*k)GB/T 10295
    Thermal Conductivity (Mean Temp.)650 C O.095w/(m*k)GB/T 10295
    FunctionHigh temp. equipments and pipelines (300-650C)
    ApplicationSuper pressure steam pipes /equipments 1 industrial furnace

    Quality Thin Fireproof Insulation Panels 3mm 6mm 10mm Aerogel Introduction 650J for sale
